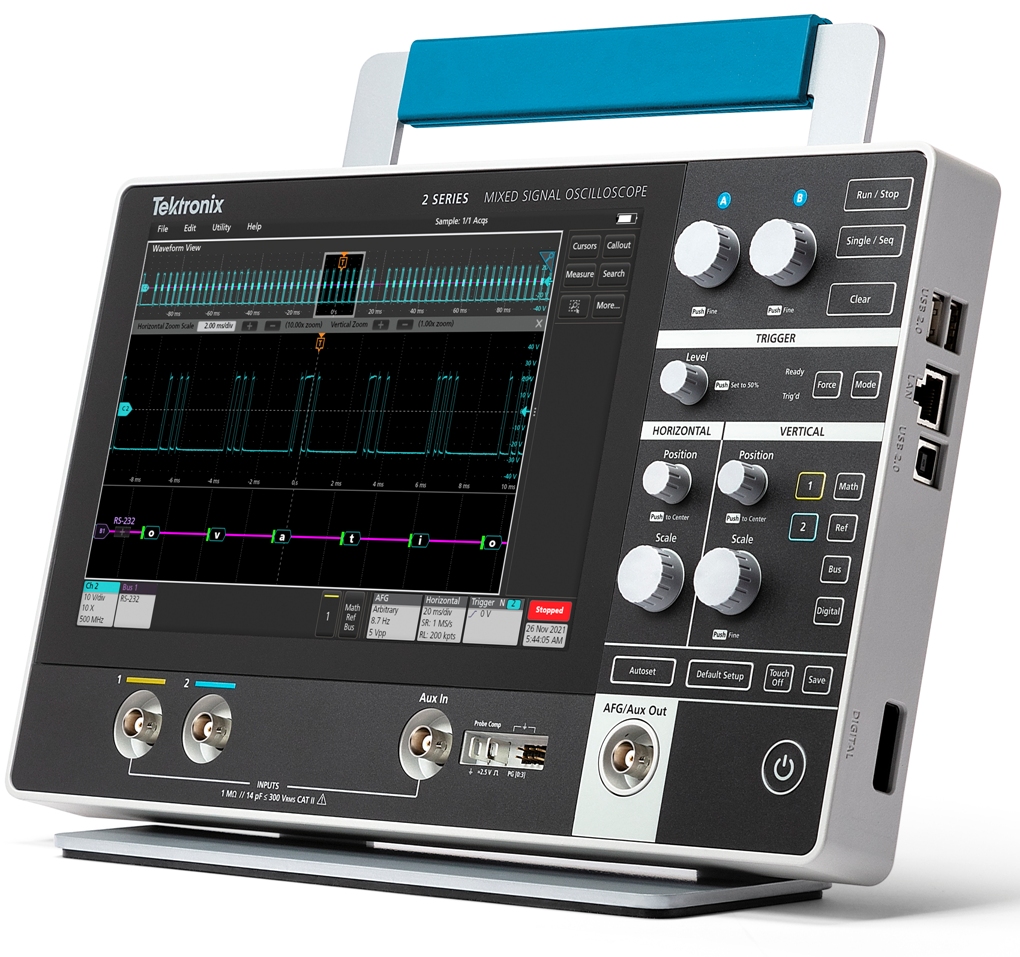

2 Series MSO Mixed Signal Oscilloscope

Unlock more space on your bench without compromising performance. At only 1.5 inches thick and less than 4 pounds, the 2 Series MSO is a full-featured, realtime touchscreen oscilloscope in a compact, portable form factor that feels like a tablet. On the benchtop, in the classroom, or to the field, take it wherever your measurement challenges take you.



Compact oscilloscope for daily debug and test

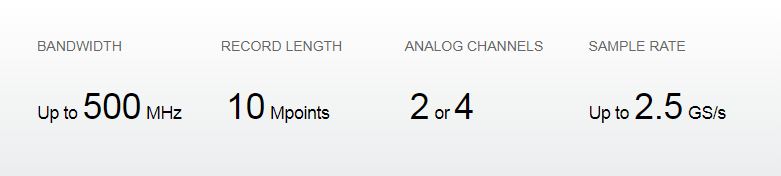

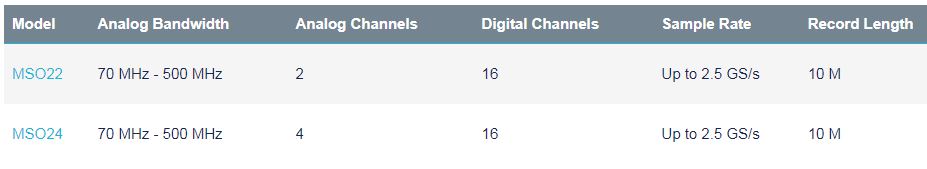

Though small enough to fit into a laptop bag, the 2 Series MSO offers bandwidths up to 500 MHz with a max sample rate of 2.5 GS/s and is available with 2 or 4 analog channels. The front and the side I/O enable easy access and connectivity. The optional detachable battery pack gives you flexibility for bench or field use.

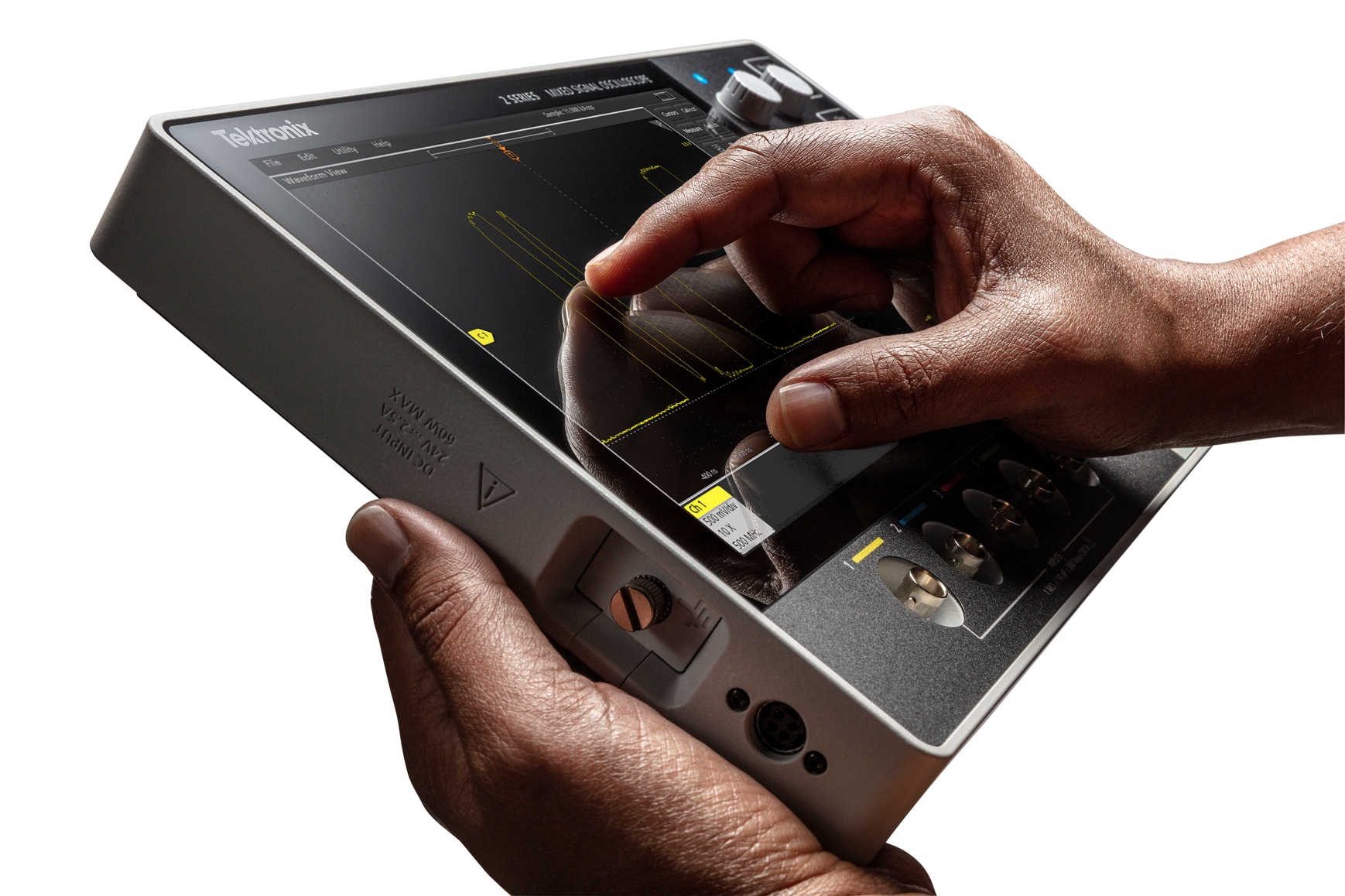

Simple touchscreen interface and controls

The 2 Series MSO offers the same award-winning touchscreen user interface and simplified control panel you’ve come to expect on the most advanced Tektronix oscilloscopes.

• Simplified front panel with only the most critical controls
• Colored LED ring lights around the knobs indicate active sources or parameters to adjust
• Colored LED light under buttons indicate status

Optional accessories add versatility

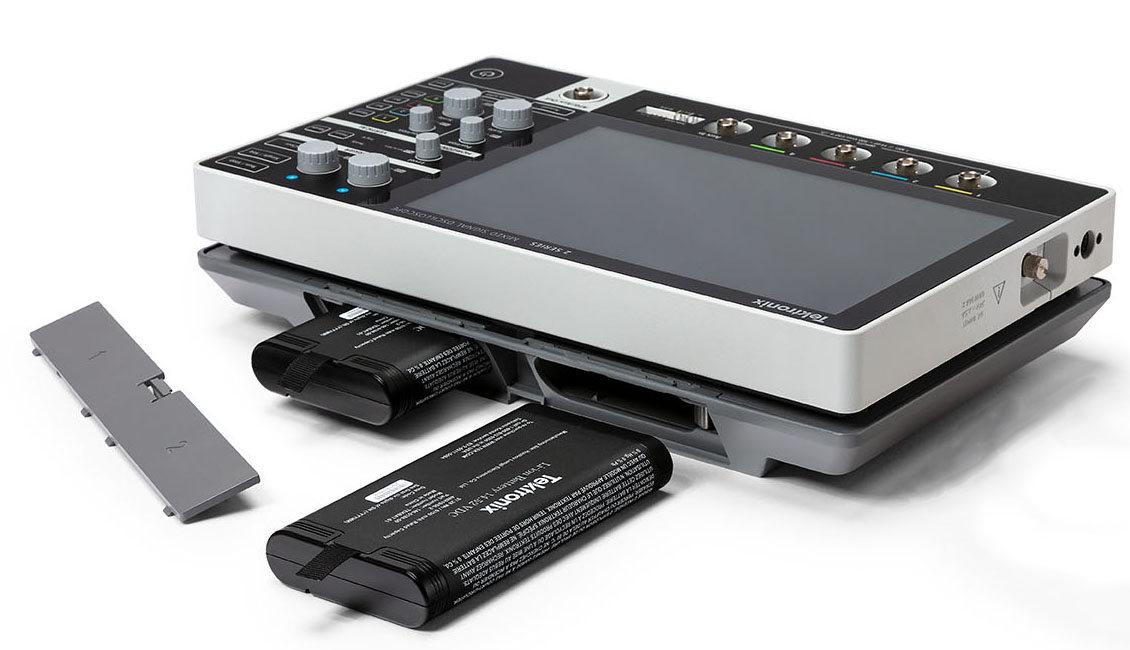

• Two-slot battery pack supports up to eight hours of battery life and can be hot swapped in the field


• Rack mount kit attaches easily to VESA mount and allows access to all instrument ports


• Optional protective case safeguards instrument from drops up to 40 inches and includes kickstand and carrying bag


• Compatible with many off-the-shelf VESA accessories, including a rolling cart, cup holder mount, desk arm mount, and more

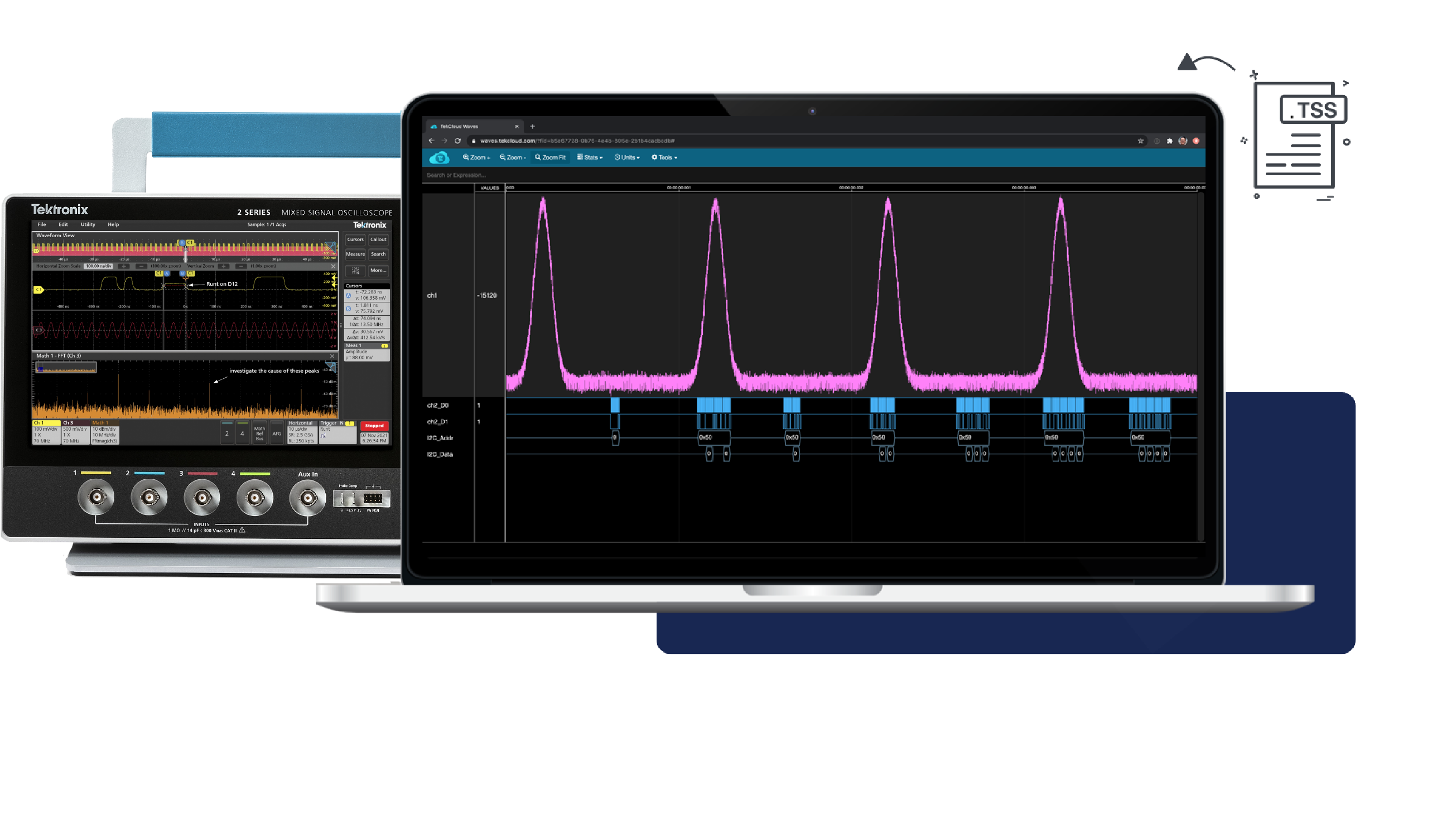

Analyze, share, collaborate with oscilloscope software

• Capture data outside the lab, classroom, or any location and collaborate easily with colleagues on the next bench or in the next time-zone.

  • Built-in VNC server to control instrument from devices such as PC, tablet, or phone
  • TekDrive cloud storage facilitates record-keeping and collaboration
  • Analyze data on or off the scope with TekScope™ PC analysis software that works just like the scope
  • TekScope and TekDrive offered for six months free
